Place Of Origin:                                                China

Model Number:                                                Customized

Technique:                                                         Pultrusion Process

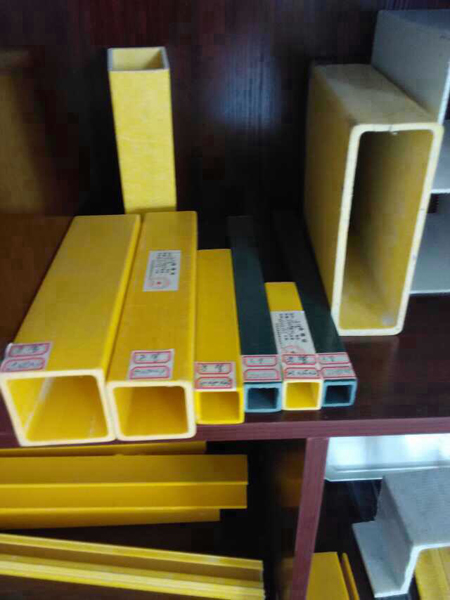

Name:                                                                 High strength frp grp pultruded profile rectangular tube

Color:                                                                   Customize

Process:                                                               Pultruded process

Eco-friendly:                                                      Yes

Type:                                                                    Rectangular

OEM:                                                                    Yes

Material:                                                              Frp Grp Fiberglass

Certificate:                                                           Iso9001 Sgs

Keywords:                                                            Fiberglass molded grating

Sample Provide:                                                 Available

Application:                                                        Construction

Surface Treatment:                                           Smooth

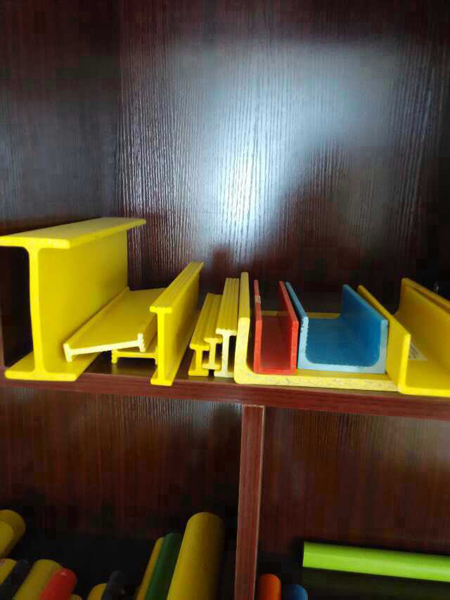

FRP extruded profiles

Performance of FRP extruded profiles

1. High strength: The specific gravity is 1.8-2.1g/cm3, which is only a quarter of that of steel. Fiberglass extruded products are lightweight and high-strength; The tensile strength of extruded profiles is 150-300 MPa, and the bending strength reaches 200-300 MPa. After 1000 hours of artificial accelerated aging, the retention rate of bending strength can reach 78%.

2. Low deformation rate: After 1000 hours of artificial accelerated aging, the length change of fiberglass extruded profiles is+0.03%, and the width change rate is -0.07%. Therefore, the geometric shape and size of products made from this extruded profile can maintain long-term stability.

3. High hot deformation temperature: The hot deformation temperature of extruded profiles is 186 ℃, which does not soften at high temperatures and remains brittle at -60 ℃, ensuring normal use at various environmental temperatures.

4. Low water absorption rate: The water absorption rate of ordinary fiberglass products is less than 0.5%, while the water absorption rate of extruded profiles is only 0.257%, suitable for use in harsh outdoor and humid environments.

5. Low insulation coefficient: The heat transfer coefficient of extruded profiles is close to that of hard PVC, and the insulation coefficient of single frame double glass insulation windows made with it is only 2.69W/(m2. K), while the insulation coefficient of windows made of steel and aluminum of the same type is as high as 4.0W/(m2. K).

6. Strong corrosion resistance: pultruded FRP products can be resistant to acid, alkali, salt, some organic solvents and other corrosive corrosion, and have incomparable advantages in the field of anti-corrosion compared with other metals, as well as good water resistance and aging resistance; The hardness retention rate of extruded profiles soaked in 3% HCl aqueous solution for 24 hours is 95%; After soaking in a 3% NaCl aqueous solution for 24 hours, the hardness retention rate was 89%. Therefore, doors and windows made of fiberglass extruded profiles are not only suitable for general residential buildings, hotels, and restaurants, but also more suitable for industrial plants in coastal areas and corrosive working environments.

7. Good safety: Pultruded fiberglass products have excellent electrical insulation, wave permeability, no electric sparks, and can be treated with flame retardant according to user needs.

8. Good impact resistance and designability: Pultruded fiberglass products allow for repeated bending without permanent deformation, and have good impact and fatigue resistance. It can also be designed with different cross-sections according to customer requirements.

9. Diverse colors and good economy: The color of extruded fiberglass products can be produced according to customer requirements, and their specifications and varieties are diverse. In addition, the product has a moderate price and good overall economy.

10. Stable product quality and good surface effect: Due to the fully automated production process of pultrusion molding, the products are formed by mold pultrusion molding, resulting in stable product quality and excellent surface effect.

11. Compliant with environmental requirements: The production process used for processing extruded profiles has the characteristics of low noise, high efficiency, low power consumption, and low pollution, which meets relevant national environmental requirements
